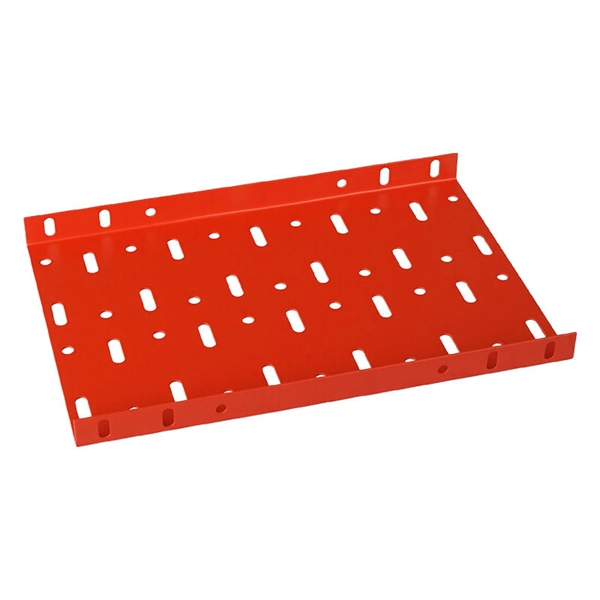

Rooftop cable trays require purpose-built supports that protect the roof, distribute weight evenly, and comply with NEC standards for safety and accessibility.

Rooftop Support Considerations

Installing a cable tray on a roof is different from indoor installations due to exposure to UV, weather, and temperature fluctuations. Rooftop supports must distribute weight across the roof surface to prevent membrane damage and avoid concentrated loads that could cause leaks or deflection. Non-penetrating bases, such as wide rubber or polymer pads, are recommended to protect TPO, PVC, EPDM, or built-up roofing systems while maintaining stability and alignment . Supports should accommodate thermal expansion and contraction, and bracing may be required for taller or heavier trays .

Compliance and Safety

According to NEC Article 392, cable trays must remain accessible, maintain at least 12 inches of vertical clearance for maintenance, and avoid prohibited areas like hoistways or enclosed spaces. Metallic trays can serve as grounding conductors if properly installed. Fill limits should not exceed 40% for power cables and 50% for control cables, and high-power and low-power circuits must be separated to prevent electromagnetic interference . Outdoor trays require sunlight-resistant cables and expansion splice plates to handle thermal movement .

Installation Best Practices

• Leveling and spacing: Ensure supports are level both vertically and horizontally, and space pipe or tray supports according to design specifications .
• Weight distribution: Check that the weight of the cable tray and cables is evenly distributed across all supports .
• Bracing: Horizontal bracing should be attached approximately three-quarters up the support legs; double or triple bracing may be required at designated locations .
• Custom solutions: Rooftop supports can be tailored to specific widths and heights, and adjustable systems like Unipier or PHP allow for flexibility in conduit, cable tray, or duct installations .

Material and Environmental Considerations

Choose tray materials (aluminum, steel, or FRP) based on load requirements and environmental exposure. Corrosion-resistant framing is essential for long-term durability, and supports should be designed to withstand wind uplift, freeze-thaw cycles, and rooftop traffic . White or reflective bases can reduce heat absorption and UV degradation .

Summary

Proper rooftop cable tray installation involves engineered supports, careful weight distribution, NEC compliance, and protection of the roofing membrane. Using purpose-built systems like PHP, Walraven, or Unistrut ensures long-term reliability, safe maintenance access, and minimal impact on the roof structure .
