A standard electrical room should provide at least 3 feet (914 mm) depth, 30 inches (762 mm) width, and 6.5 feet (≈2 meters) height of clear working space in front of the distribution panels, with overall room dimensions often around 21×16 feet for larger installations.

Electrical Room Sizing

When designing a room for electrical distribution boxes, the National Electrical Code (NEC) specifies minimum working clearances to ensure safety and accessibility. For panelboards up to 600V, the NEC requires a minimum clearance of 30 inches wide, 3 feet deep, and 6.5 feet high in front of the panel, with doors able to open fully to 90° . For larger 480V distribution equipment, a clearance of 4 feet along walls and 6 feet 1.5 inches for central equipment is recommended, with a minimum access path of 2 feet between equipment doors to allow unimpeded egress . These clearances influence the overall room perimeter, which for industrial or large commercial setups may reach 21×16 feet to accommodate equipment doors and safe movement .

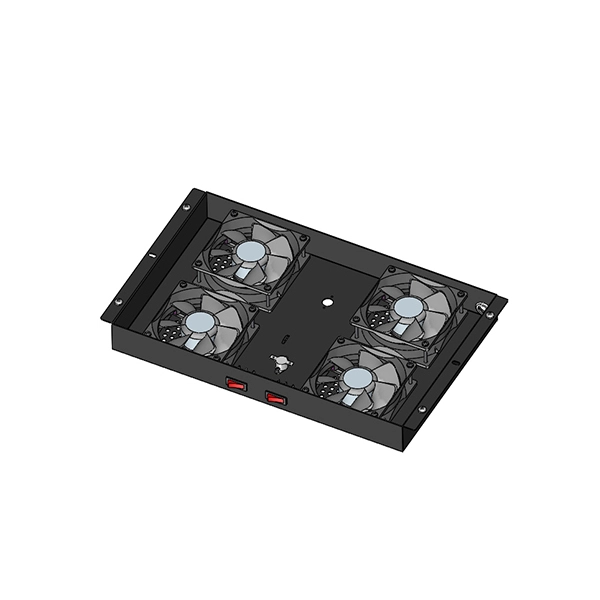

Standard Electrical Enclosure Sizes

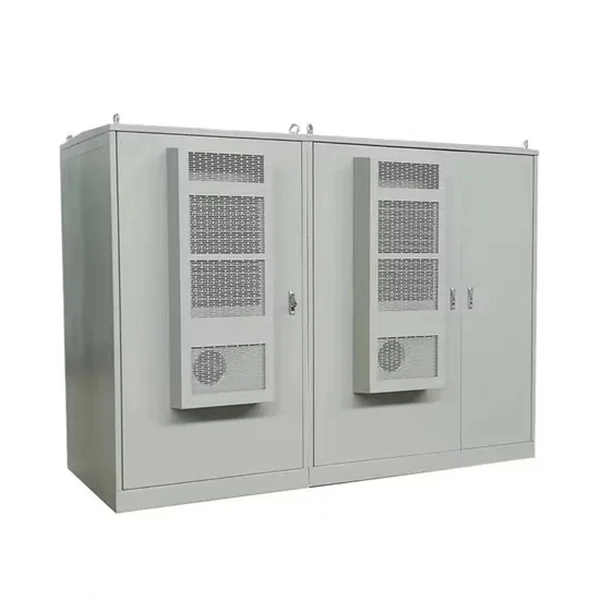

Electrical distribution boxes themselves come in various standard sizes, depending on manufacturer and application. Typical residential or light commercial wall-mount enclosures range from 200×200×120 mm up to 800×600×300 mm, while freestanding cabinets for larger installations may be 1600–2200 mm high, 600–1800 mm wide, and 300–600 mm deep . The number of circuits, internal layout, and future expansion needs determine the exact size. Residential breaker boxes often range from 12 to 42 circuits, while industrial panels may be custom-sized to house PLCs, relays, and bus bars .

Key Considerations

• Clearances: Always maintain NEC-required working space around panels for safety and maintenance .
• Access: Ensure doors can open fully and provide unobstructed egress paths .
• Future Expansion: Allow extra room for additional circuits or equipment.
• Enclosure Type: Choose wall-mounted or freestanding cabinets based on available room space and load requirements . By combining NEC clearance requirements with typical enclosure dimensions, designers can determine the minimum perimeter and layout for a safe and functional electrical room.
