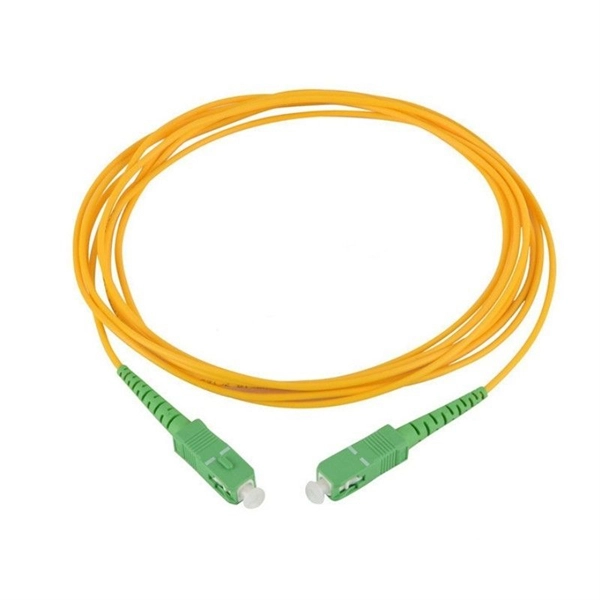

Fiber optic patch cords are tested for optical attenuation using standardized methods such as FOA FOTP-171, TIA-568.3-E, and IEC 61300 series, focusing on insertion loss (IL) and return loss (RL) with calibrated equipment and bidirectional measurements.

Key Testing Standards

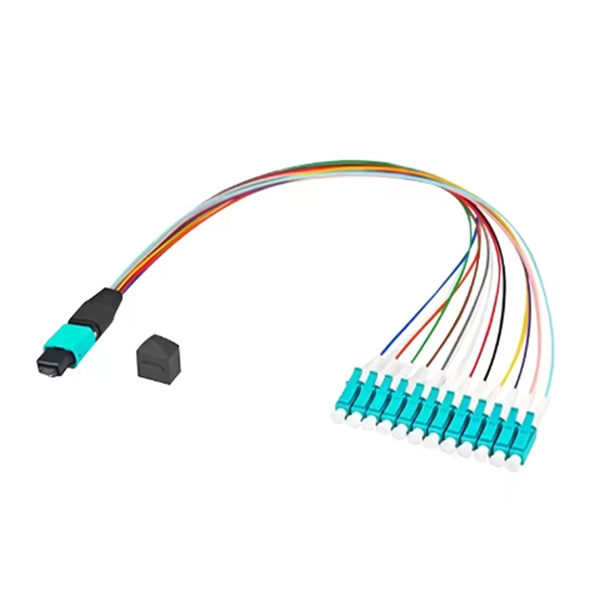

FOA FOTP-171 is a widely used standard for testing patch cord loss, often referred to as a "double-ended" loss test. It measures the total loss of the fiber plus connectors using a launch cable to calibrate the input power, avoiding destructive cutback tests. This method ensures accurate measurement of connector and fiber losses, and is applicable to multimode and singlemode fibers, hybrid cables, and various connector types . TIA-568.3-E specifies performance, transmission, and test requirements for optical fiber cables, connectors, and patch cords. It includes guidelines for maintaining polarity, measuring link attenuation, and performing bidirectional testing to ensure accurate characterization of the fiber link . IEC 61300 series provides connector-level testing procedures, including mechanical, optical, and environmental tests. It defines maximum allowable IL and minimum RL values for different fiber types and connector polish grades, ensuring interoperability and reliability in data centers and telecom networks .

Testing Parameters

• Insertion Loss (IL): The difference in optical power between input and output ports after inserting the patch cord, expressed in dB. Typical single-mode patch cords have IL between 0.15 dB and 0.5 dB when properly manufactured .
• Return Loss (RL): The ratio of reflected power back toward the source, also in dB. Higher RL values (e.g., >50 dB) indicate minimal reflections and better connector quality .

Recommended Testing Procedures

1. Reference Calibration: Use a factory-certified reference cable to establish a zero-loss baseline by connecting the source → reference → power meter.
2. Device Under Test (DUT) Measurement: Replace the reference with the patch cord and measure output power. Calculate IL as IL = 10 log₁₀(P_in / P_out), .
3. Bidirectional Testing: Measure IL in both directions to compensate for connector mating asymmetries and average the results for accurate characterization .
4. Equipment: Optical Loss Test Set (OLTS) or Light Source and Power Meter (LSPM) for IL; OTDR for longer spans or discrete event detection; Variable Optical Attenuator (VOA) for power calibration .

Practical Considerations

• Connector Inspection: Use a microscope to check for scratches, cracks, or contamination. Clean connectors before retesting if necessary .
• Mode Conditioning: For multimode fibers, ensure proper mode power distribution to reduce measurement uncertainty .
• Environmental Testing: Patch cords may be subjected to temperature, mechanical stress, and environmental tests as defined in IEC 60794 and Telcordia GR-20 to ensure long-term reliability . By following these standards and procedures, fiber optic patch cords can be accurately tested for optical attenuation, ensuring compliance, reliability, and optimal network performance.
