Industrial power distribution boxes typically use low-voltage cables ranging from 10 mm² to 300 mm², depending on load, voltage, and installation conditions.

Typical Cable Sizes

In industrial power distribution systems, the cable size is primarily determined by the current load, voltage level, and installation environment. For low-voltage (LV) distribution boxes operating below 1 kV, common conductor sizes include 10 mm², 16 mm², 25 mm², 35 mm², 50 mm², 70 mm², 95 mm², 120 mm², 150 mm², 185 mm², 240 mm², and 300 mm², with larger sizes used for higher current loads or main feeders . Medium-voltage (MV) systems (1 kV to 36 kV) require thicker insulation and often use XLPE or EPR insulated cables with cross-sections tailored to the load and distance .

Factors Affecting Cable Selection

1. Current Carrying Capacity (Ampacity): The cable must safely carry the expected load without overheating. Ampacity depends on conductor size, insulation type, and installation method .
2. Voltage Rating: LV cables are typically rated up to 1 kV, while MV cables handle 1–36 kV. The insulation thickness increases with voltage .
3. Environmental Conditions: Temperature, humidity, chemical exposure, and mechanical stress influence cable choice. Flexible rubber cables (e.g., H07RN-F) are used for mobile or harsh environments, while armored cables (SWA or STA) provide mechanical protection in industrial settings .

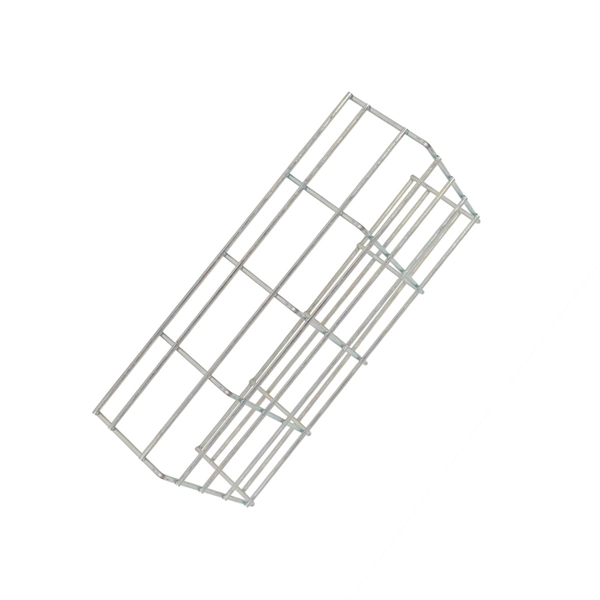

4. Installation Method: Cables in trays, conduits, or buried underground may require derating factors. Bundled cables or high ambient temperatures reduce ampacity, necessitating larger conductor sizes .
5. Protection Requirements: Short-circuit, overcurrent, and arc fault protection influence cable sizing. Proper coordination with circuit breakers and fuses ensures safety .

Common Cable Types

• PVC Insulated Cables: Economical, chemical-resistant, suitable for general LV distribution .
• XLPE Insulated Cables: High thermal and electrical performance, ideal for demanding industrial environments .
• Rubber Flexible Cables (H07RN-F): Used for mobile equipment or areas requiring flexibility, rated up to 1 kV .
• Armored Cables (SWA/STA): Provide mechanical protection for underground or high-stress installations .

Practical Recommendation

For a typical industrial LV distribution box supplying machinery or production lines, cables in the range of 16 mm² to 95 mm² are commonly used for branch circuits, while main feeders may require 120 mm² to 300 mm² depending on total load and distance. Always calculate the rated current, voltage drop, and derating factors before final selection to ensure safety and compliance with standards . By considering these factors, engineers can select the appropriate cable size to ensure reliable, safe, and efficient power distribution in industrial facilities.
