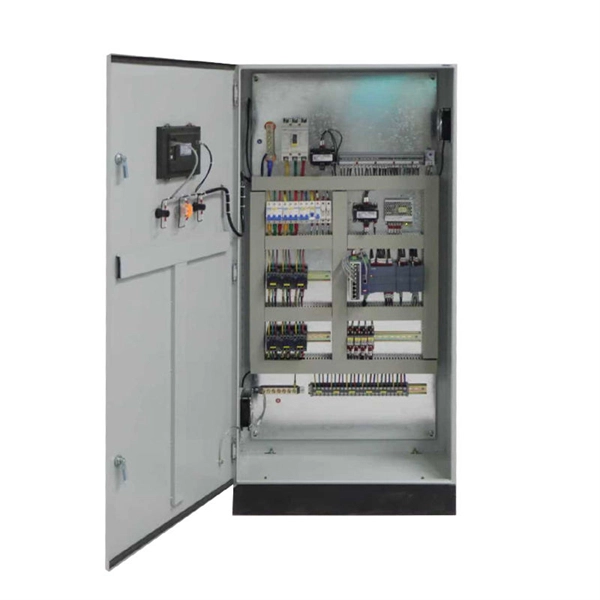

Incoming lines to distribution boxes must be sized and spaced according to conductor gauge, box fill capacity, and code requirements to ensure safety and prevent overheating.

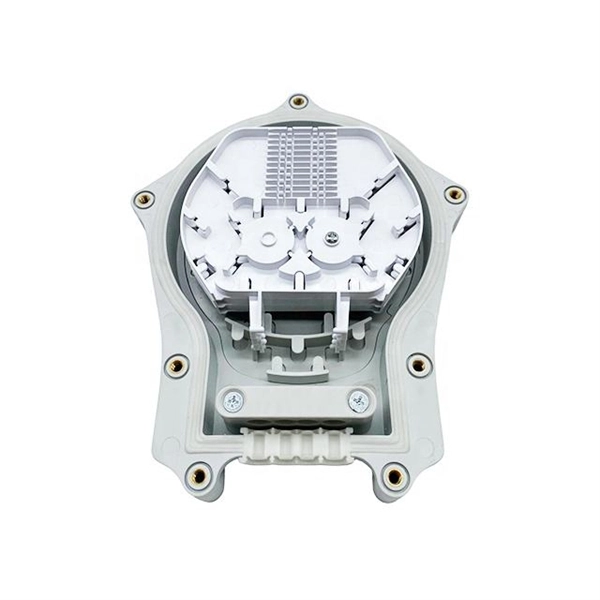

Conductor Sizing and Box Fill

The size of incoming lines is determined primarily by the current-carrying capacity of the conductors and the load requirements of the distribution system. The National Electrical Code (NEC) provides guidelines for calculating box fill, which ensures that the number and size of conductors do not overcrowd the enclosure, preventing overheating and maintaining safe operation ( ). Each conductor, grounding wire, and device contributes to the total box fill allowance. For example:

• Each current-carrying conductor counts as one allowance.
• Grounding conductors count as one allowance.
• Devices such as switches or breakers count as two allowances.
• Internal clamps or fittings also count as one allowance ( ). The total volume of the box must meet or exceed the sum of these allowances, typically measured in cubic inches or cubic centimeters. NEC Articles 314.16 and 314.28 provide formulas for calculating the required box volume based on conductor size and number ( ).

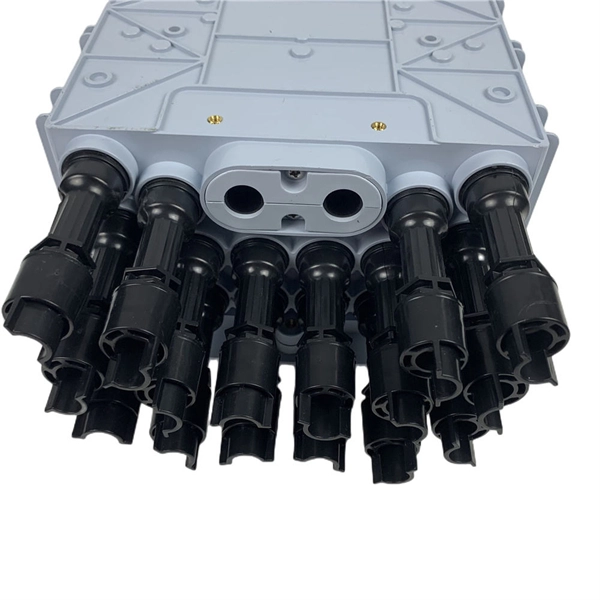

Conduit and Cable Entry Requirements

Incoming lines are often routed through conduits to protect the conductors and facilitate safe installation. Conduit sizing must account for:

• The number of conductors.
• The cross-sectional area of each conductor.
• The maximum fill ratio to allow airflow and prevent overheating ( ). Standards typically limit conduit fill to a percentage of the internal area (e.g., 40% for one conductor, 31% for two, 40% for three or more, depending on the code) to ensure safe cable pulling and heat dissipation ( ).

Installation and Safety Considerations

• Distribution boxes should be installed in dry, accessible locations with proper ventilation and at a recommended height of around 1.5 meters ( ).
• Ensure proper grounding, neat cable management, and correct wire gauge selection.
• Include protection devices such as breakers, fuses, or surge protectors for each circuit.
• Avoid overcrowding the box; maintain adequate spacing between conductors to prevent thermal hotspots ( ).
• Label all circuits clearly and follow UL/CE-certified components for compliance and safety ( ).

Summary

To comply with standard requirements:

1. Select conductor size based on load and current rating.
2. Calculate box fill using NEC guidelines, counting all conductors, devices, and fittings.
3. Choose appropriate conduit size to accommodate incoming lines without exceeding fill limits.
4. Install distribution boxes in accessible, ventilated locations with proper grounding and protection devices.
5. Maintain spacing and labeling to ensure safety, ease of maintenance, and code compliance ( ). Following these standards ensures that incoming lines to distribution boxes are safe, efficient, and compliant with electrical codes.
