Layered power distribution in data centers organizes power delivery hierarchically, combining redundancy, modularity, and scalability to ensure reliable and efficient supply to IT equipment.

Overview of Layered Power Distribution

Layered power distribution in data centers is a hierarchical approach that delivers power from the utility or medium-voltage source down to individual IT racks. The principle ensures reliability, fault tolerance, and flexibility by dividing the system into multiple layers:

1. Utility and Medium-Voltage Layer: Power enters the data center through medium-voltage switchgear and is stepped down via MV/LV transformers to usable voltages for IT equipment .
2. Centralized UPS Layer: Uninterruptible Power Supplies (UPS) provide backup and conditioning, often configured in N+1 or 2N redundancy to maintain continuous operation during faults or maintenance .

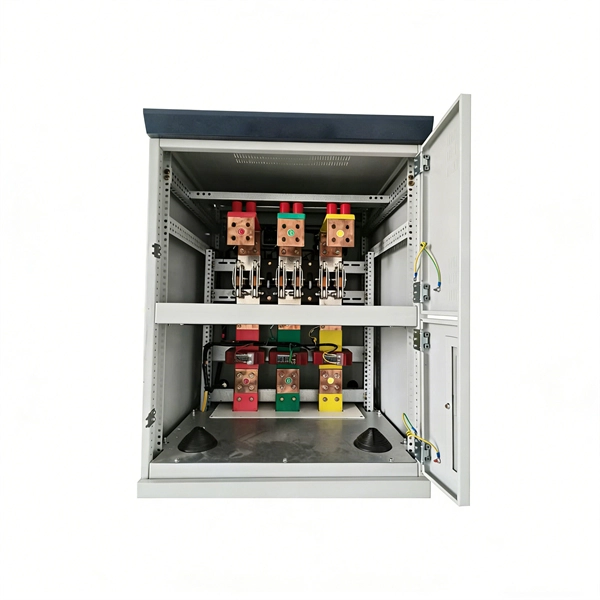

3. Distribution Layer (PDUs/RPPs): Power Distribution Units (PDUs) or Remote Power Panels (RPPs) distribute power to racks. These can be field-wired, factory-configured, or modular busway systems, supporting flexible deployment and high-density racks .

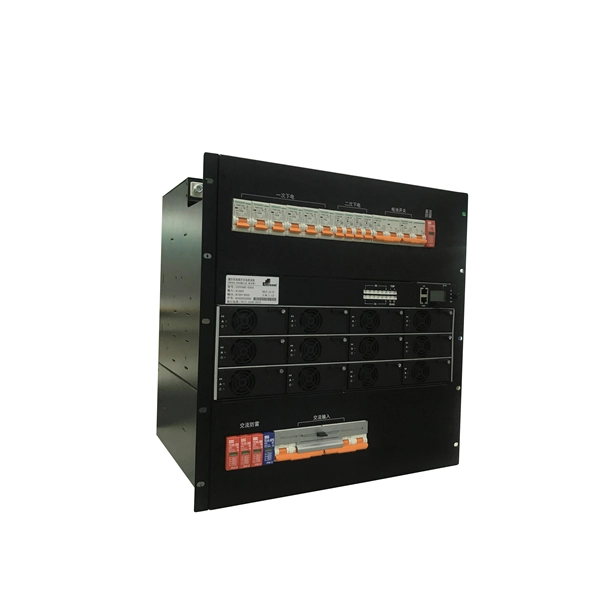

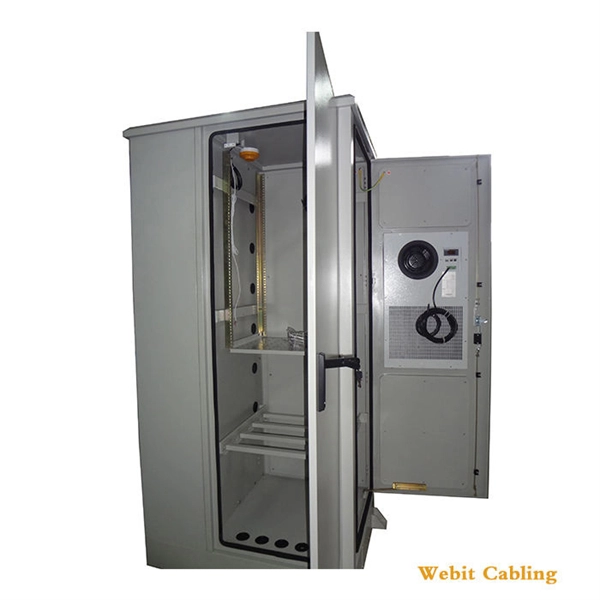

4. Rack-Level Layer: Individual racks receive power through dual-corded connections for redundancy. Rack PDUs may include monitoring, metering, and branch circuit protection to manage load and detect faults .

Key Principles

• Redundancy: Layered distribution often uses 2N or N+1 topologies, where two independent systems feed critical loads, ensuring that a failure in one path does not interrupt IT operations .
• Modularity: Modular PDUs and busways allow scalable deployment, enabling IT racks to be added or reconfigured without major rewiring .
• Segmentation: Power paths are physically and electrically separated (e.g., Side A and Side B in Tier IV designs) to prevent a single fault from affecting multiple systems .
• Efficiency and Utilization: Layered systems optimize asset utilization. For example, block-redundant topologies allow the active UPS to operate at full capacity while the reserve UPS remains on standby, improving efficiency up to 80% .

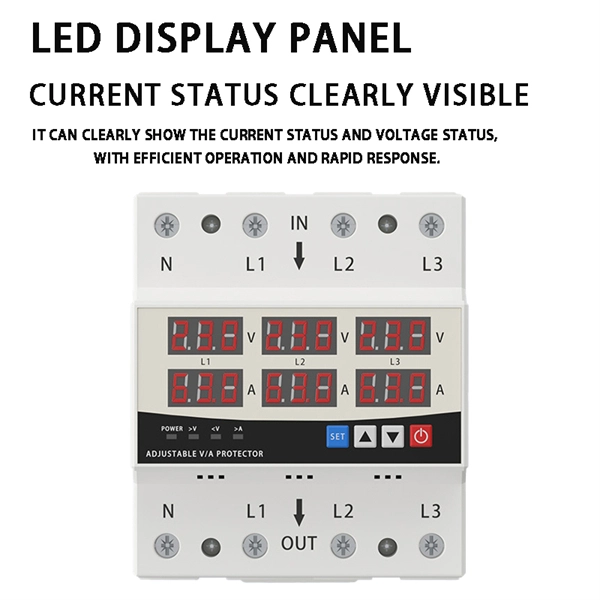

• Monitoring and Control: Each layer can include instrumentation for branch-level metering, load balancing, and fault detection, supporting proactive management and compliance with standards like IEC, ANSI/TIA-942, and Uptime Institute Tier classifications .

Benefits

• High Availability: Ensures continuous power to critical IT loads even during maintenance or component failure.
• Scalability: Supports incremental growth of IT infrastructure without redesigning the entire power system.
• Flexibility: Modular and layered design accommodates varying rack densities, dynamic load profiles, and evolving IT requirements.
• Compliance: Meets international and regional standards for safety, efficiency, and redundancy. In summary, the layered power distribution principle in data centers combines hierarchical delivery, redundancy, modularity, and monitoring to provide reliable, efficient, and scalable power from the utility to individual IT racks, supporting modern high-density and AI-driven workloads .
